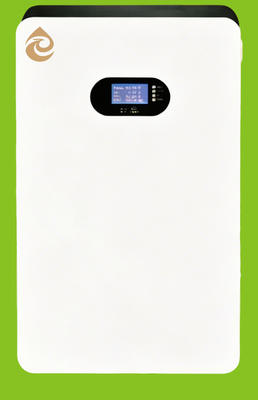

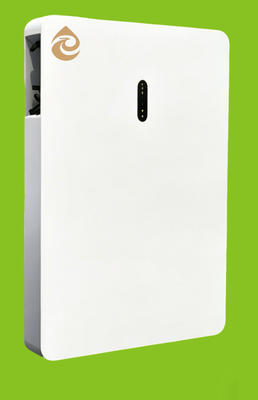

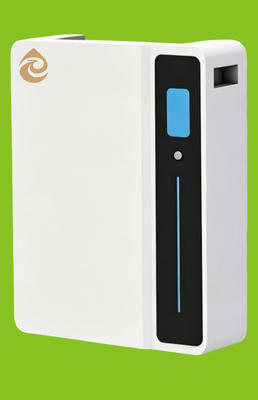

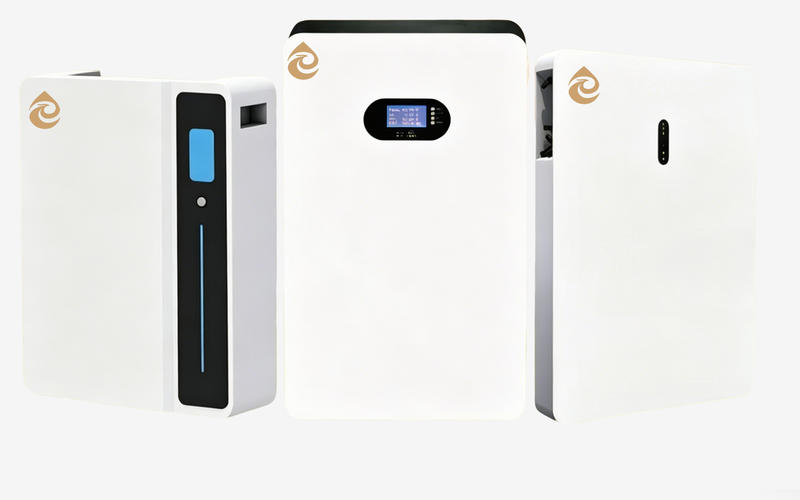

Wall-mounted energy storage battery

Wall-mounted energy storage battery(48V/100Ah 48V/200Ah 48V/314Ah

产品参数
  • 订单(最小起订量) :

    50
  • 支付 :

    T/T
  • 产品产地 :

    china
  • 颜色 :

    Black and White
  • 交货时间 :

    fifteen
  • 重量 :

    43/45kg 84/89kg 105/110kg

Wall-mounted energy storage battery(48V/100Ah 48V/200Ah 48V/314Ah

This wall-mounted energy storage battery features a compact wall-mounted design, perfectly suited for residential and small-to-medium commercial scenarios, delivering high-performance, reliable energy storage solutions with exceptional durability and adaptability.

At its core, the battery boasts an extended cycle life, capable of withstanding deep charge-discharge cycles to significantly prolong service life and reduce long-term ownership costs. It supports up to 15 units in parallel, enabling flexible capacity expansion to meet diverse power demands, from household energy storage to commercial peak shaving applications. For seamless integration, its display is compatible with over 20 mainstream inverter protocols, allowing effortless connection with most inverter brands without complex retrofitting. Additionally, the battery achieves an IP65 waterproof and dustproof rating, ensuring robust protection against harsh environments like humidity and dust, making it ideal for both indoor and outdoor installations.




Whether for home solar energy storage, backup power supply, or commercial peak load shifting, this wall-mounted energy storage battery provides efficient, stable, and secure energy storage, empowering users to achieve energy independence and reliable power access.





Specifications of the products


Product Name: Wall-mounted energy storage battery(48V/100Ah Wall-mounted energy storage battery( 48V/200Ah  Wall-mounted energy storage battery(48V/314Ah
Product Model:  5kWh/A1 10kWh/A1  16kWh/A1
Rated voltage:
48V/51.2V 48V/51.2V 48V/51.2V
Rated capacity:
100AH 200AH 314AH
Charge termination voltage:
54.0V/58.0V 54.0V/58.0V 54.0V/58.0V
Discharge cutoff voltage:
39.0V/42.0V 39.0V/42.0V 39.0V/42.0V
Communication method
RS485/CAN(bluetooth optional) RS485/CAN(bluetooth optional) RS485/CAN(bluetooth optional)
Size (mm)
600*410*140mm 850*485*145mm 850*420*230mm
Weight (kg)
43/45kg 84/89kg 105/110kg

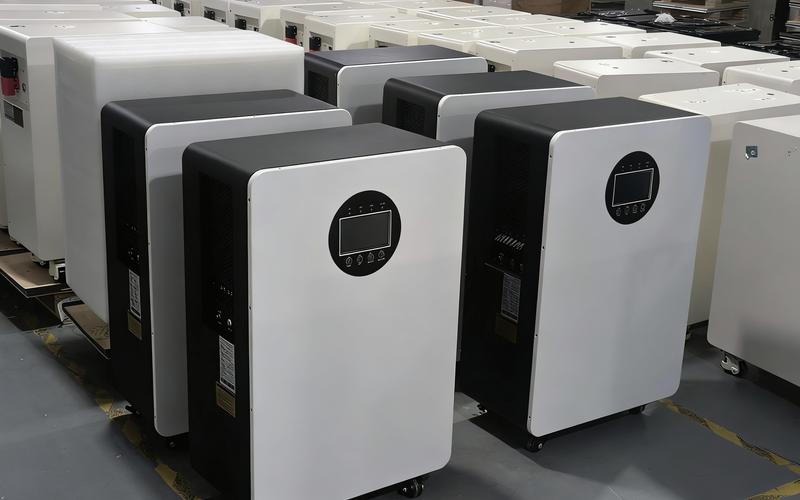

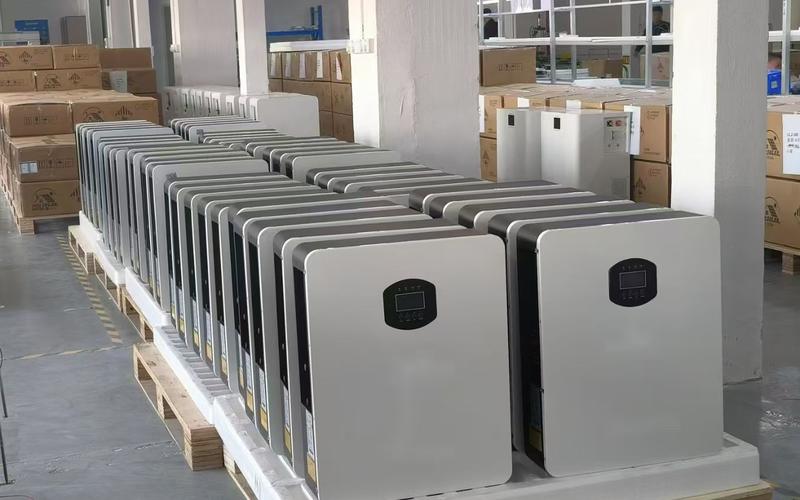

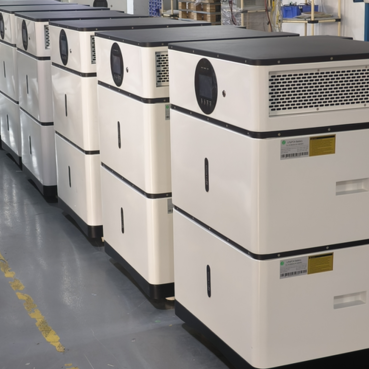

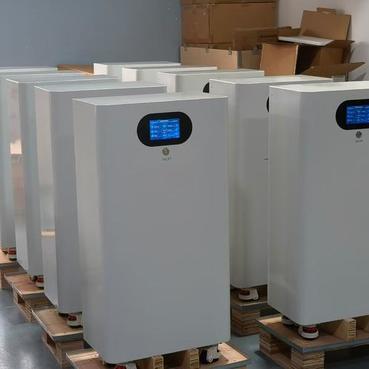

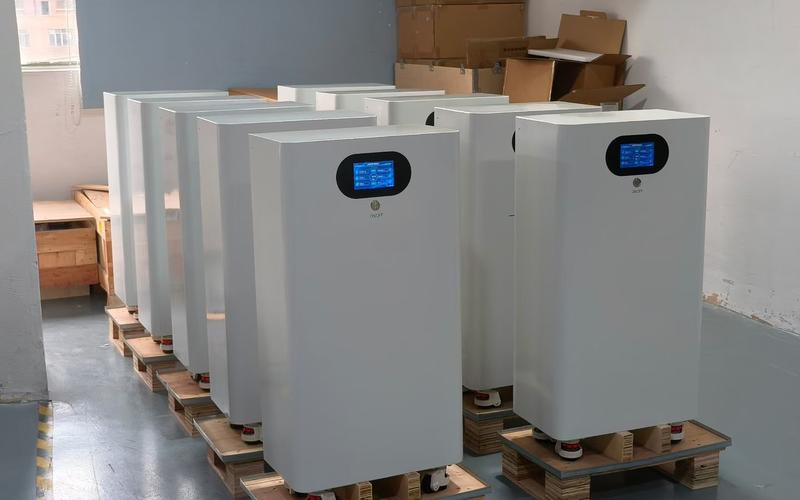

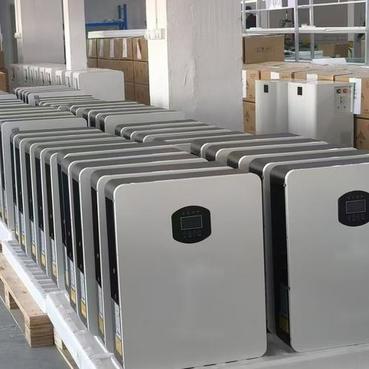

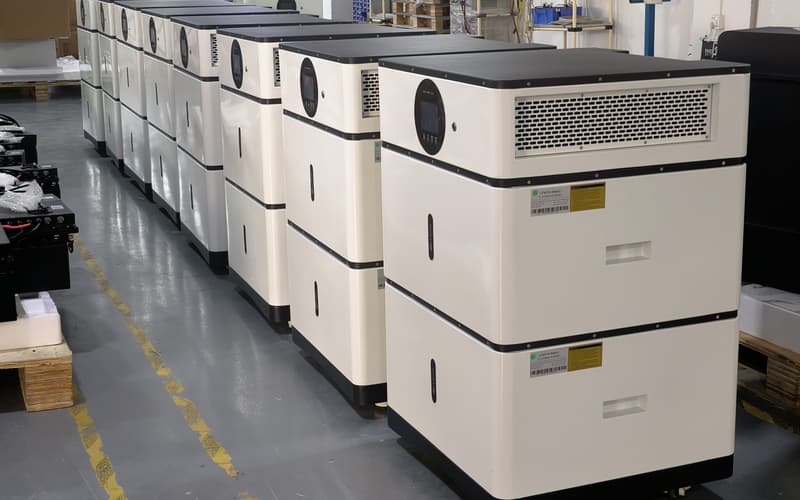

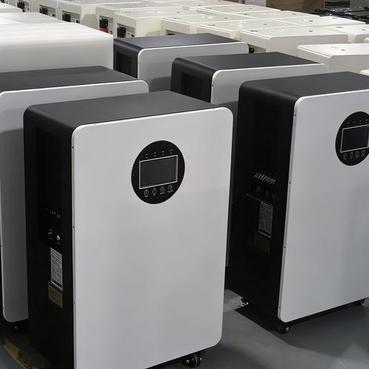

Factory production photos
